Checking the toe settings is your first step. Ensure that the front wheels point slightly inward when viewed from above, typically around 1/16 inch. This adjustment improves handling and tire wear.
Next, assess the camber angle. The upper parts of the wheels should lean inward, creating a slight tilt. A range of 0 to -1 degree is recommended for most utility vehicles, allowing for optimal traction and stability.
Don’t overlook the caster angle. This pertains to the steering axis tilt and should ideally sit between 3 to 6 degrees. A positive caster angle enhances steering return and directional control, contributing to a smoother ride.
After making these adjustments, take your vehicle for a test drive. Monitor how it tracks straight and responds to steering inputs. If pulling occurs, revisit your settings and fine-tune as necessary.
Aligning Your Ride’s Wheels
Ensure the measurements of the front and rear wheels match the specifications provided by the manufacturer. Use a measuring tape to check the distance between the front of the wheels and the back. Adjustments should be made to maintain a parallel orientation to enhance handling and wear.

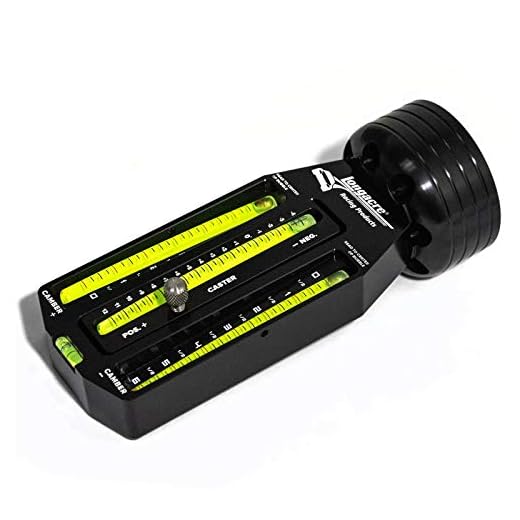

Utilize a camber gauge to check the tilt of the wheels. The ideal angle typically ranges from 0 to -1 degree, ensuring balanced contact with the ground. If adjustments are required, modify the tie rods accordingly to achieve the desired angle.
To assess toe, observe whether the front of the tires points inward or outward when viewed from above. For optimal performance, the front tips should converge slightly. Adjust tie rods to achieve a correct measurement, which should generally be around 1/8 inch inward.
Finally, double-check your work by taking the vehicle for a test drive on a flat surface. Pay attention to any pulling to one side or irregular tire wear, which indicate further adjustments may be necessary. Regular maintenance will prolong the life of the wheels and enhance overall performance.
Understanding the Importance of Tire Alignment
Regular maintenance of your vehicle’s wheels is crucial for ensuring safety and optimizing performance. Misalignment can lead to uneven wear, affecting both the lifespan of your rubber and the overall handling of the machine. Proper positioning helps maintain stability, allowing for smoother and controlled navigation.
Observing wear patterns on the surface can reveal misalignment issues. If one side shows more wear than the other, it’s a clear indication adjustments are needed. Additionally, proper setup boosts fuel efficiency, reducing unnecessary strain on the power unit.
Another factor to consider is comfort. Correct positioning minimizes vibrations transmitted through the chassis, resulting in a more pleasant experience for passengers. Regular inspection and maintenance can prevent larger issues and save on costly repairs down the line.
Finally, consult with a professional if unfamiliar with the process. They can provide insights tailored specifically to your vehicle’s requirements, ensuring that all elements work in harmony. With proper care, performance and durability are greatly enhanced.
Tools Needed for Tire Alignment on Golf Carts
Begin with a quality tape measure for precise measurements of wheel distances and angles. A carpenter’s square will help ensure the chassis is perpendicular to the wheels.
A reliable level is necessary to check if the surface is even, which affects measurements. A set of wrenches will assist in adjusting various components; select a socket wrench for tight spots.
A specialized alignment tool with adjustable features allows for accurate readings of camber and toe angles. Additionally, a pair of pliers can help with loosening stubborn fittings.
Consider using a chalk or marker to denote alignment marks on the ground, facilitating easy reference during adjustments. Finally, a torque wrench ensures that all bolts are tightened to manufacturer specifications after making any changes.
| Tool | Purpose |
|---|---|
| Tape Measure | For precise distance measurements |
| Carpenter’s Square | To check 90-degree angles |
| Level | To ensure even surface |
| Wrenches | To adjust fittings |
| Alignment Tool | For measuring angles |
| Pliers | To loosen fittings |
| Chalk/Marker | For marking reference points |
| Torque Wrench | To secure bolts to specifications |
Step-by-Step Guide to Measuring Toe Angle
To accurately determine toe angle, follow these steps:
-
Gather necessary tools: a tape measure or a wheel alignment tool, a level, and a marker.
-
Ensure the vehicle is on a flat, level surface. Check that all wheels are straight and the steering wheel is centered.
-
Mark the front of each wheel at the same height, ideally on the sidewall. Use the marker to make small, visible dots.
-
Measure the distance between the two marks at the front of the wheels, then measure the distance between the same marks at the back of the wheels.
-
Calculate toe by subtracting the rear measurement from the front measurement. The result is the toe angle. A positive value indicates toe-in, while a negative value shows toe-out.
-
Adjust the alignment according to the desired specifications, referencing the manufacturer’s guidelines.
Verify adjustments with a second measurement to ensure accuracy. Adjust as necessary until the desired toe angle is achieved.
Adjusting Camber and Caster Angles for Optimal Performance
For precise steering response, keep the camber angle between -1° and 1°. Negative camber improves cornering grip by placing more tire surface on the ground during turns. Measure with a camber gauge. Adjust by loosening the upper control arm bolts and shifting the arm to attain the desired angle.
Caster angle influences straight-line stability and steering feel. Aim for a caster angle of 3° to 5°. Proper caster enhances tracking and reduces steering effort. Use adjustable components if needed; make adjustments by modifying the tilt of the axle or spindle area. Check adjustments with an alignment tool for accuracy.
Examine both angles after adjustments to guarantee they complement each other effectively. Test-driving after calibration helps assess if handling improvements meet expectations. Regularly inspect these angles to maintain optimal performance.
Common Mistakes to Avoid During Tire Alignment
A common error is neglecting to measure before making adjustments. This can lead to overcorrection and unbalanced settings. Always verify initial measurements to determine the extent of changes needed.
Using incorrect or outdated equipment can yield inaccurate results. Ensure alignment gauges are calibrated and functioning correctly to avoid misinterpretation.
Ignoring Manufacturer Specifications
Many individuals skip consulting the manufacturer’s guidelines. Each model has specific angles for optimal performance. Refer to the manual for precise measurement values.
Overlooking Additional Factors
Not accounting for tire wear, suspension condition, and vehicle load can skew alignment results. Inspect these elements regularly as they directly influence wheel positioning.
Failure to perform periodic checks post-alignment can result in reverting to improper angles. Regular maintenance and re-evaluation are essential for sustained performance.
Avoid making adjustments solely based on visual observations. Relying on feel rather than data can lead to erroneous conclusions about alignment accuracy.
Maintaining Proper Tire Alignment Over Time
Regular inspections are necessary to ensure optimal precision in wheel positioning. It’s advisable to check alignment every few months or after extensive use, especially if the vehicle experiences rough terrain. Observing uneven tire wear can indicate misalignment and should prompt immediate action.
Routine Maintenance Tips
Inflate tires to the recommended pressure levels. Under-inflation or over-inflation can lead to misalignment and accelerated wear. Use a pressure gauge to monitor and adjust accordingly. Additionally, rotating tires periodically promotes even wear and helps maintain accurate positioning over time.
Signs of Alignment Issues
Pay attention to handling. If steering feels off-center or requires frequent adjustments, this may signal misalignment. Listen for unusual noises while driving; they can also suggest problems with wheel positioning. Address any noticeable changes promptly to prevent further complications.
